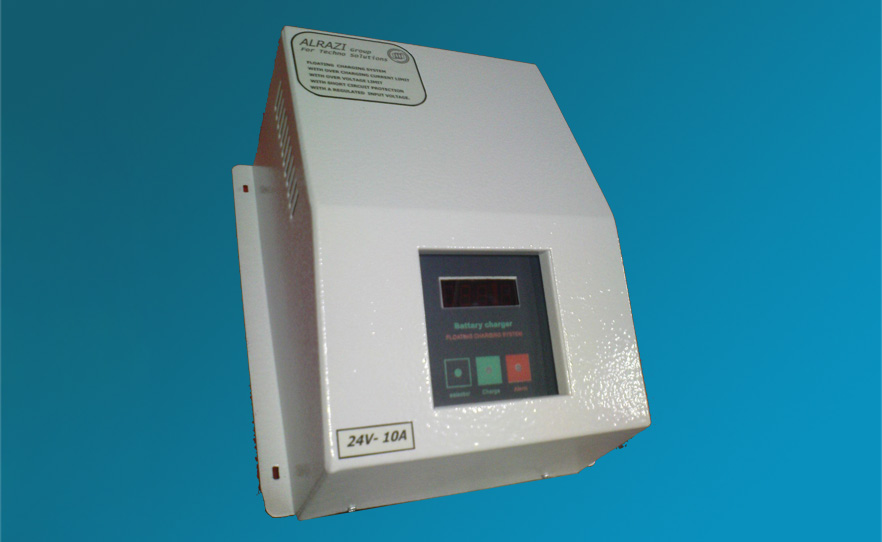

The Smart Battery Charger with it’s developed System(micro controller).

To charge Batteries of: (Electric generators – Cars in selling exhibition, emergency lighting) by an advanced system. It can be used as a power supply for (PBX, Control Panels).

Technical specifications:

1- Automatic charging .

2- Floating Charging System.

3- With over charging current limit.

4- With over voltage limit.

5- With short circuit protection: doesn’t stop charging when battery is over discharged (nearly short circuit), in order to charge such batteries.

6- With transformer over heat protection.

7- With a reversal polarity protection.

8- With a regulated input voltage from 160 to 220 V.

9- Microprocessor Controlled

Load : 10 – 15 – 20 – 25 – 30 – 40 …Amps.

Dc output : 12 – 24 -26 – 48 – 60….. DC Volts

Charger Type:	CHTH1210	CHTH2410	CHTH1215	CHTH2415	CHTH1220	CHTH24
DC Output	12V	24V	12V	24V	12V	24V
Max. Current	10A	10A	15A	15A	20A	20A
Weight	4.2kg	6.3kg	6.9kg	9.9kg	7.2kg	11.3kg
Dimensions	20x16x13 Cm	20x16x13 Cm	26x26x14 Cm	26x26x14 Cm	26x26x14 Cm	26x26x14 Cm
