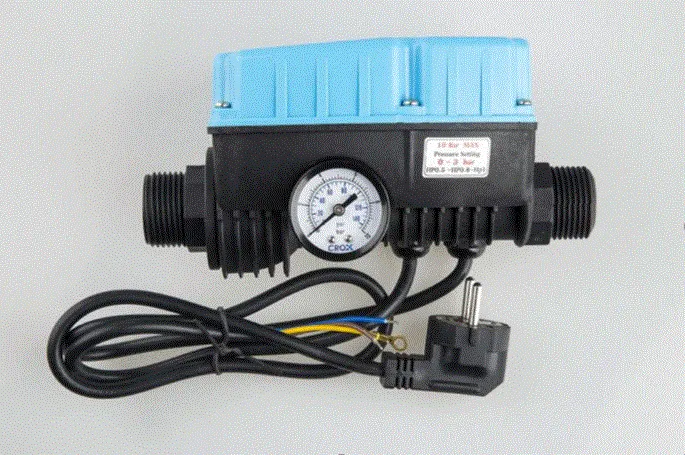

Automatic Electrical Controller For Water Pumps | HSF-3030

Specifications of the Device :

Water pressure sensor
Water flow sensor
search for water
Electronic Board computer System (smart system).
Six light indicators which show the operation of the device, pump and water.
Device restart button.
Pressure sensor starting from (0.5 < 3 bar)
Pressure endurance limit of the device body (Maximum 10 bars) .
Water pressure gauge.
Device water inlet/outlet (1″).
Device body and all main parts are made of plastic (Polyamide fibers).
Pressure sensor lash is made of thermal silicon.
Water flow sensor lash is made of thermal silicon.
Electric cable and plug from the device to the electric socket (3×0.75mm) 0r (according to customer request).
Electric cable from the device to the water pump (3×0.75mm). or ( according to customer request).
Voltage: 220 volt AC
Electric current: 16 Amps. maximum.
Electric Power: 1.5 KW. maximum.
Fit with pumps types 0.5hp – 1hp -1.5hp
Water temperature, maximum 65 °C.
Easy to install and maintain.
The device was designed to suite hot and cold weather (Europe, Asia, Middle East and Arabian Gulf)
